Model 802-8G

Model 802-8G

Regular price €826,95 EUR
Regular price Sale price €826,95 EUR
Sale Sold out

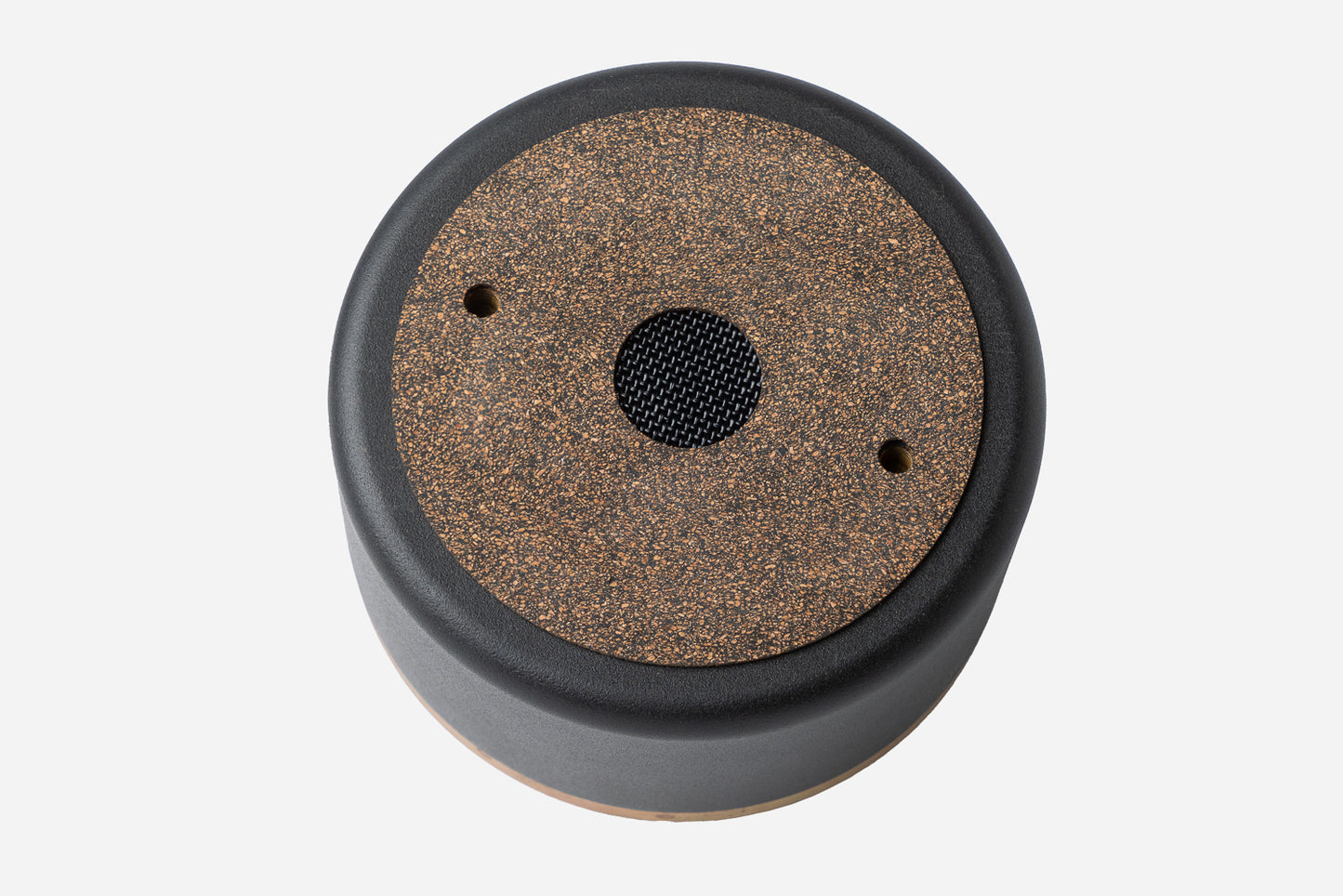

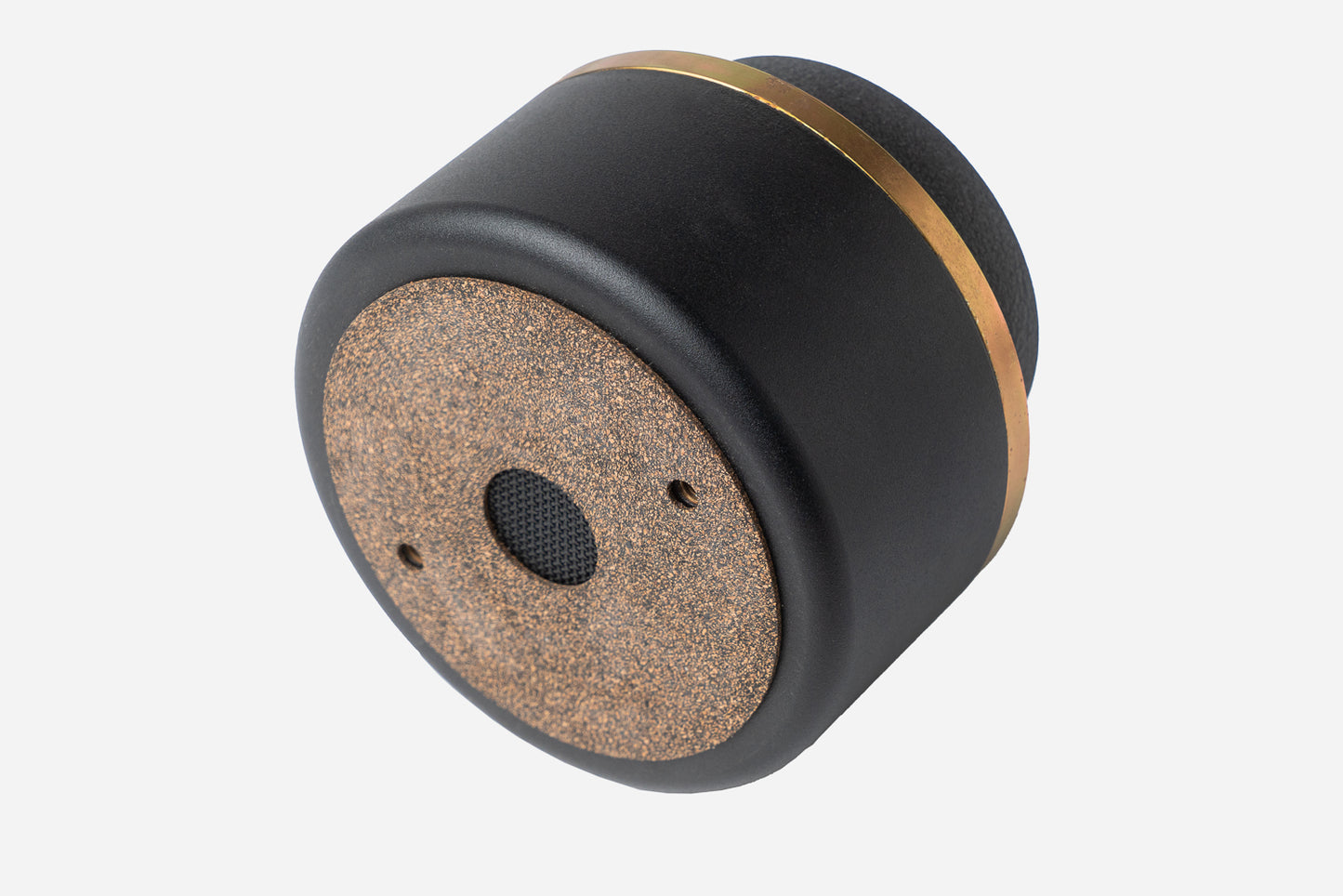

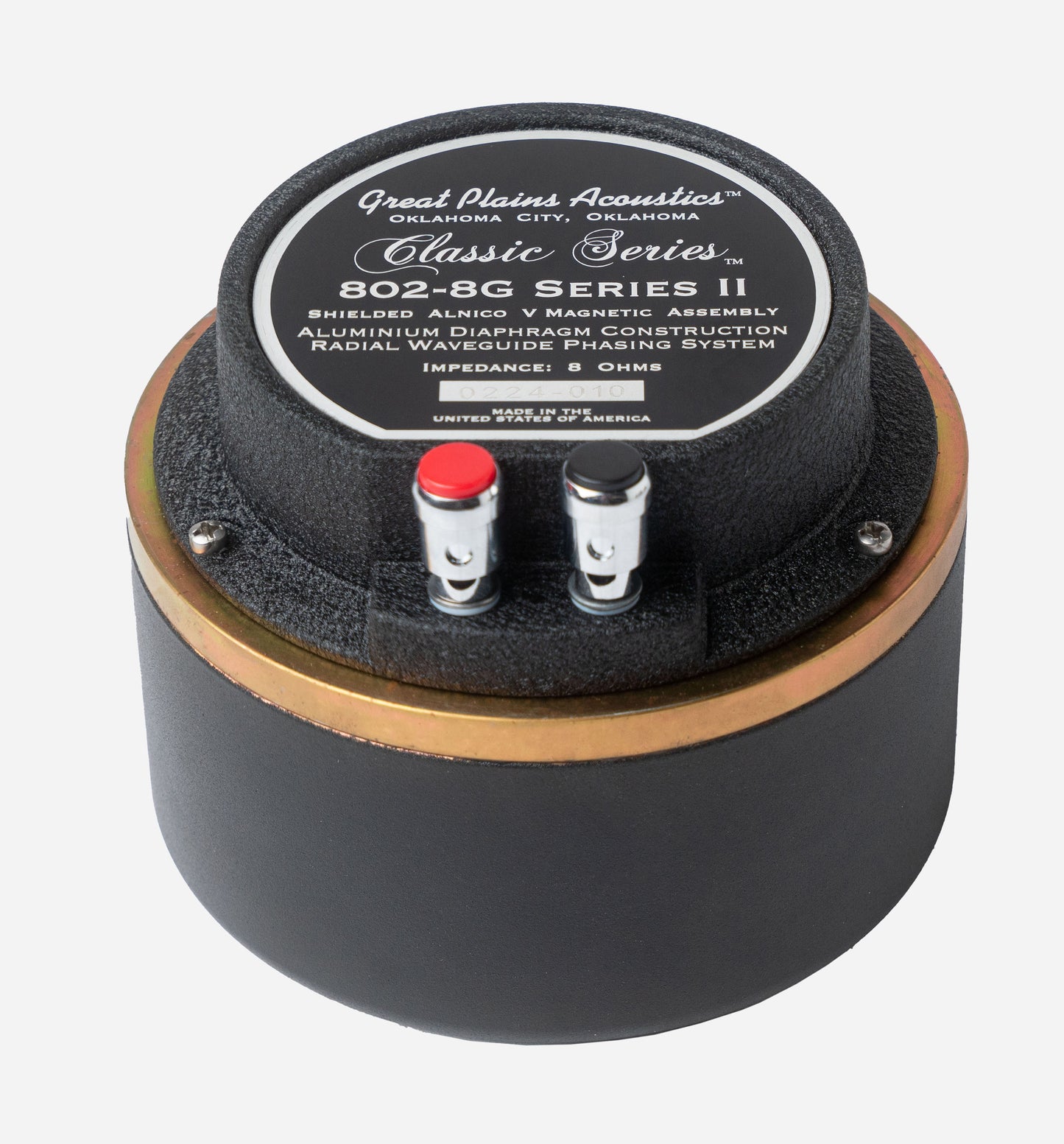

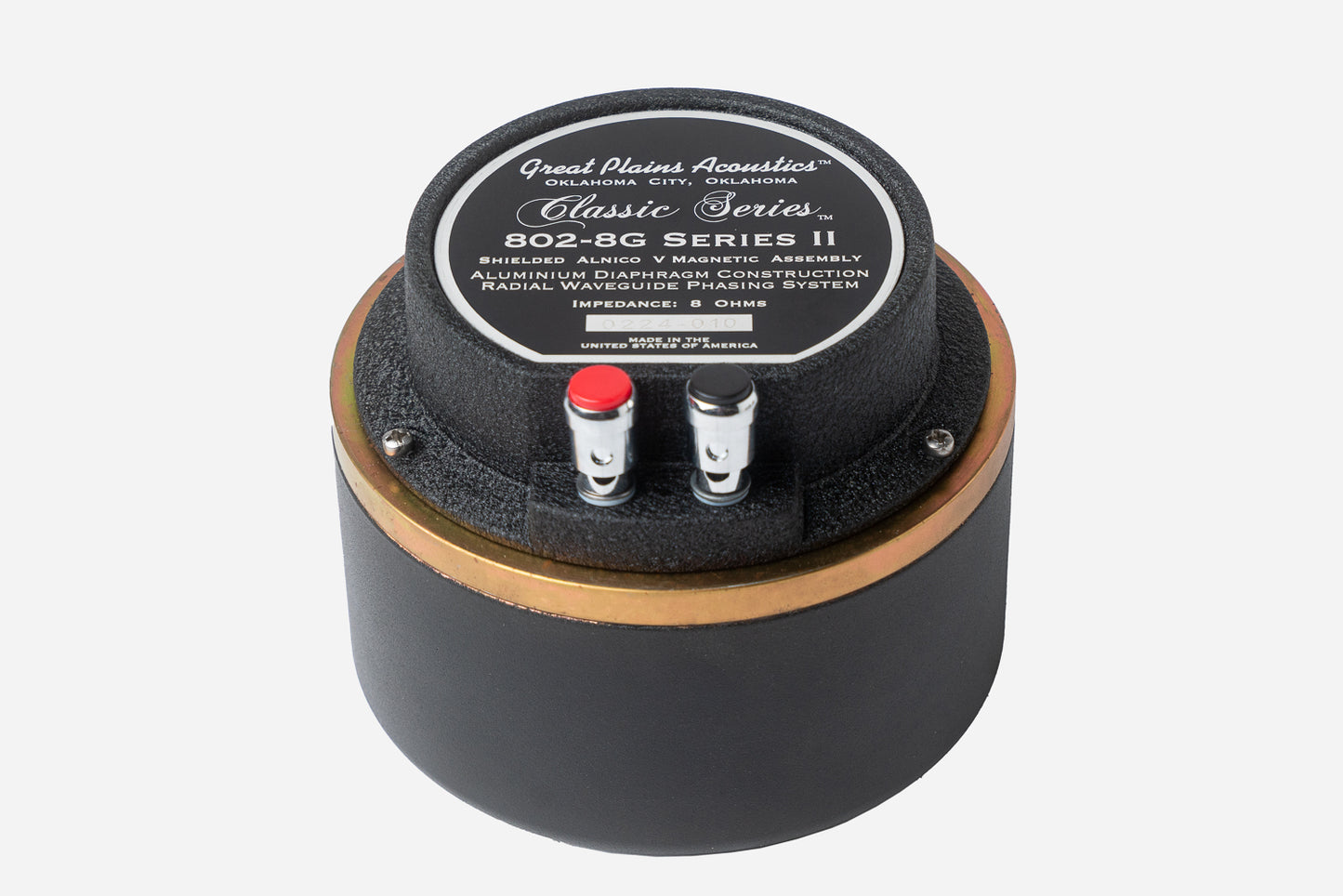

Our 802-8G (16G) Series II is a small format [1 in. (25 mm) diameter throat exit] high frequency compression driver, featuring a 1.2 lbs. (0.54 kg) AlNiCo V magnet, which produces an at-rest gap flux density of 1.525 T. It also features a 1.75 in. (45 mm) diameter, edge-wound, aluminum-ribbon voice-coil. The voice-coil is attached to a high grade aluminum alloy diaphragm. Sound waves from the high frequency voice-coil- diaphragm assembly are channeled through our Radial Waveguide phasing system. This system provides the proper phase relationship between the sound waves emanating from the center of the diaphragm assembly and the sound waves emanating from the edges of the diaphragm assembly.


Click Here To View The 802-8G Spec Sheet
