Model 416-8B (16B)

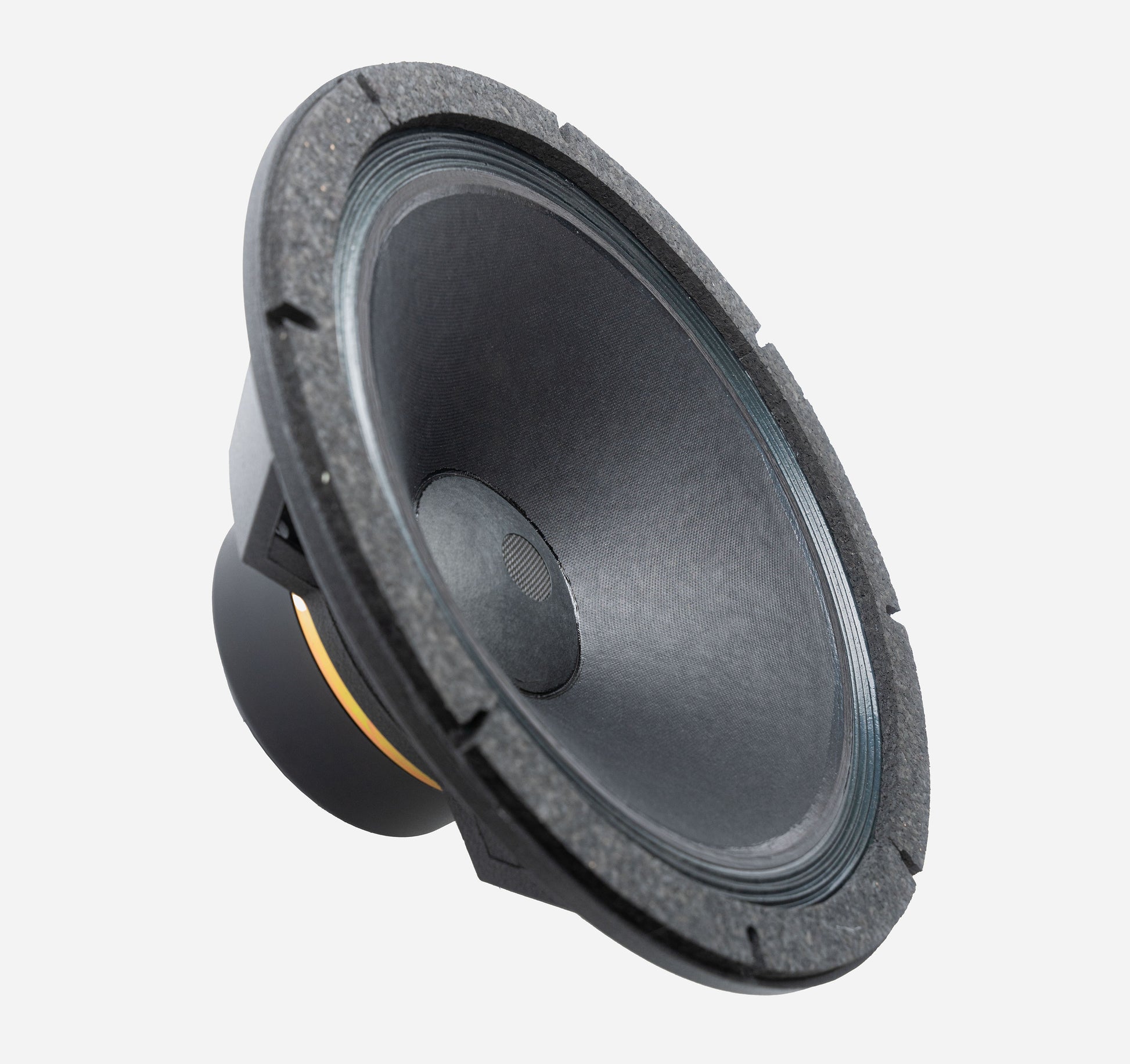

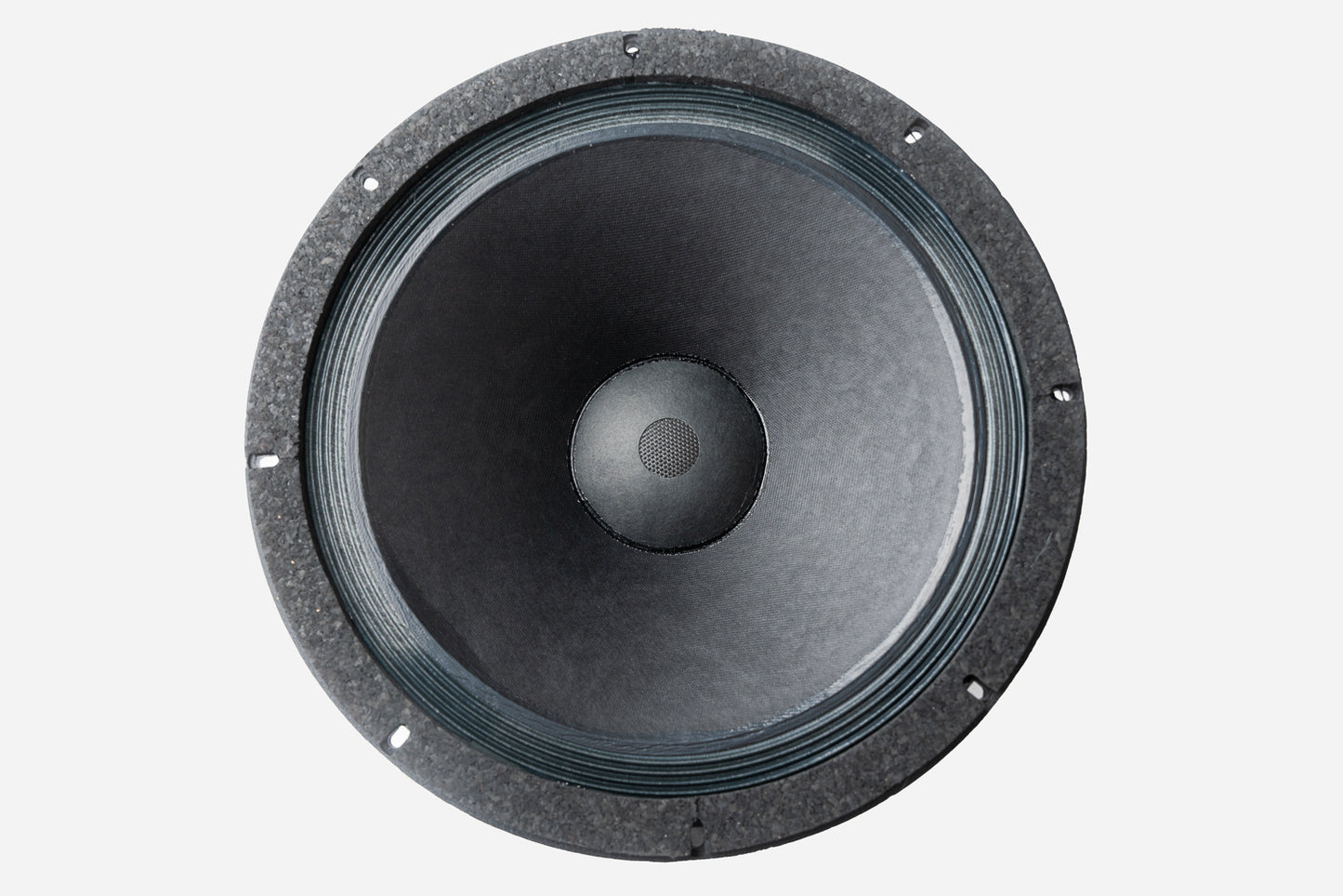

Our model 416-8B (16B) is a 16 in. (381 mm) low frequency loudspeaker. This model’s characteristic performance, including extremely smooth response and extraordinary linearity, makes it ideal for use in a wide-range of sound reinforcement and high fidelity applications.

Click Here To View The 416-8B Spec Sheet

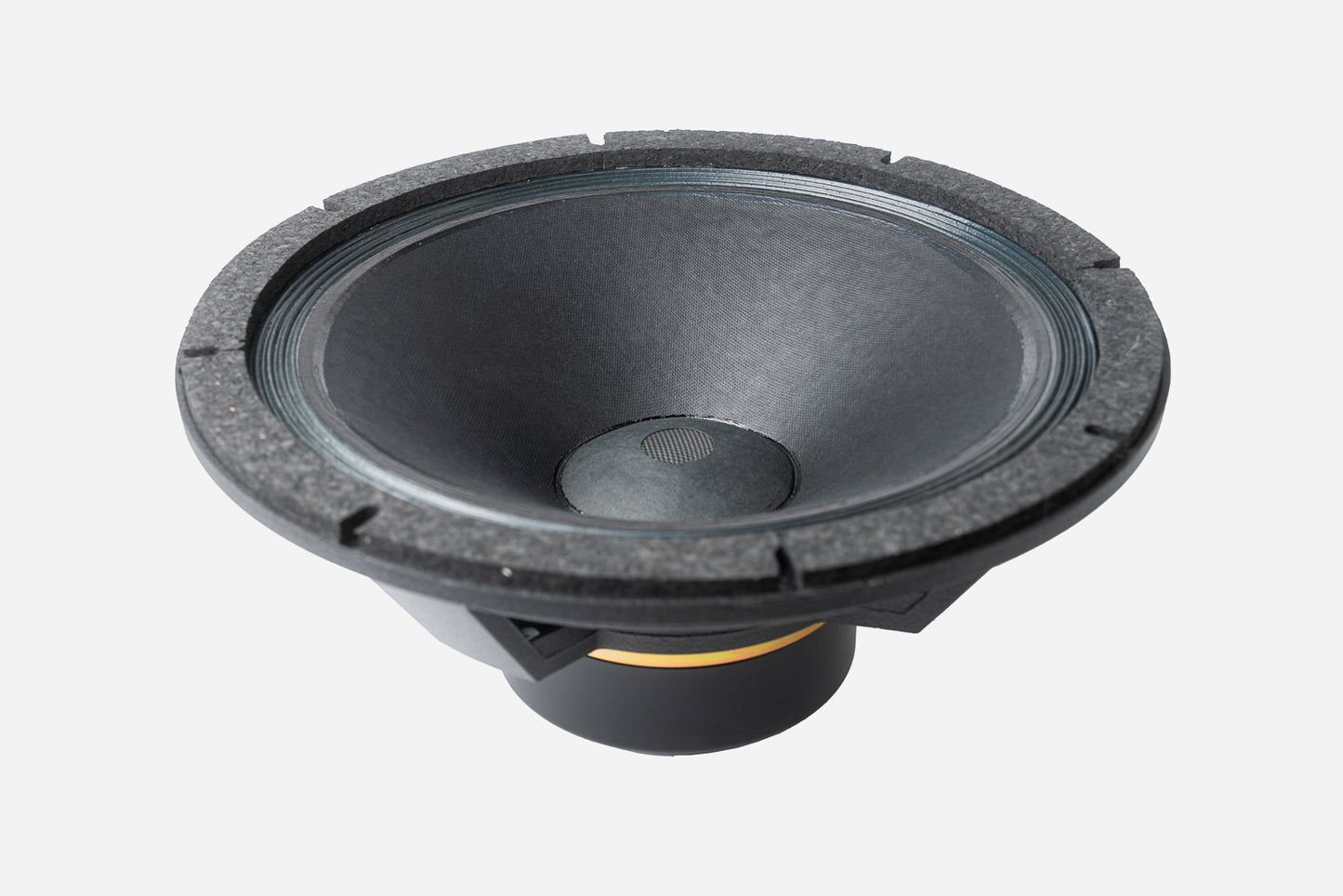

This loudspeaker features a structurally reinforced, die-cast, aluminum frame. The frame’s 8 mounting bolt slots will accept a 0.25 in. (6 mm) diameter bolt or smaller, allowing the loudspeaker to be attached to almost any secure surface by either a front mounting or a rear mounting method.

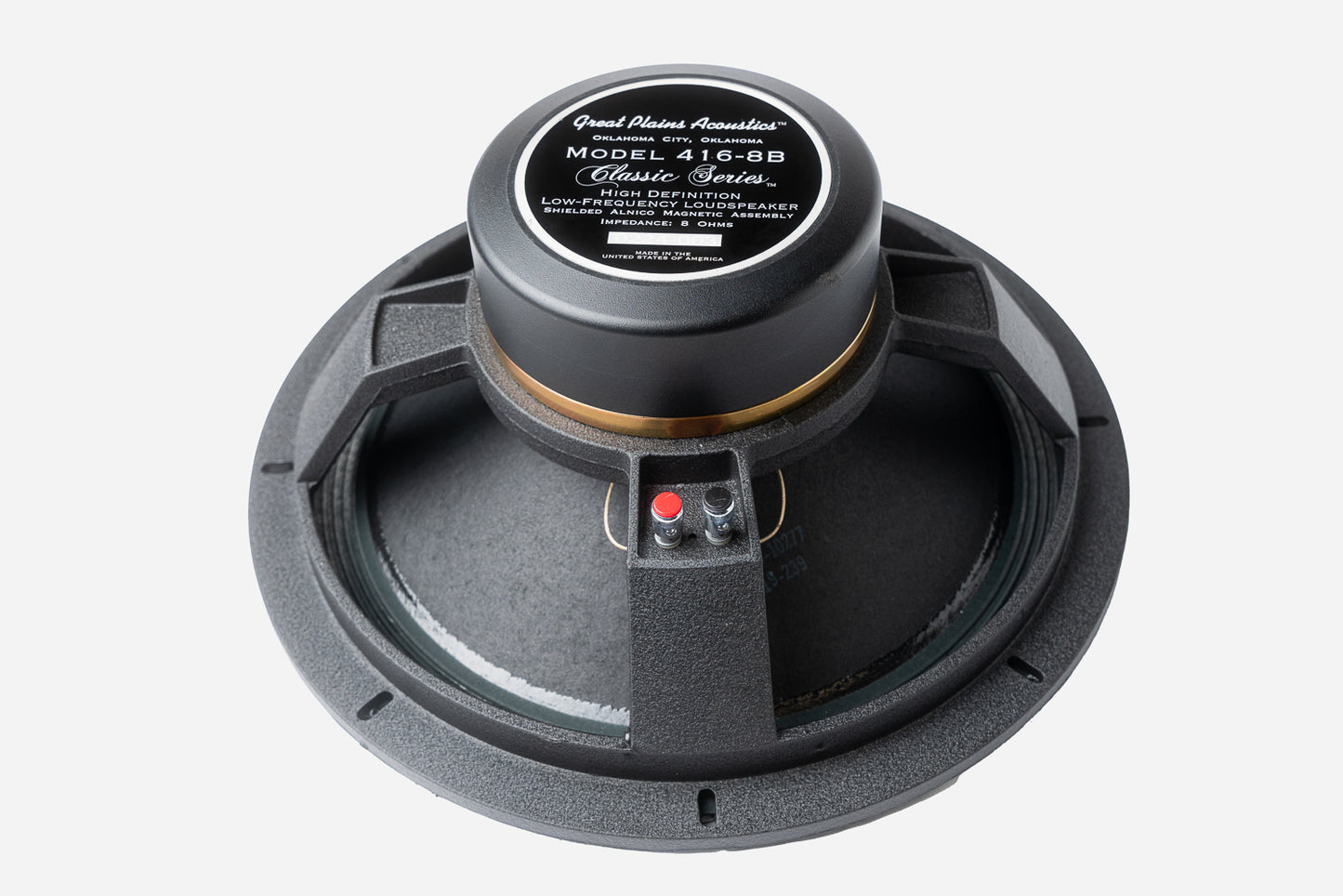

Also featured is a 2.44 lbs. (1.1 kg) AlNiCo V magnet, which produces an at-rest gap flux density of 1.1 T. Another feature is the 3 in. (76 mm) diameter, edge-wound, copper-ribbon voice-coil. This voice-coil is attached to a high grade fiber cone. The cone is secured to the frame with a high compliance cloth surround.
