Model 414-8B
Model 414-8B

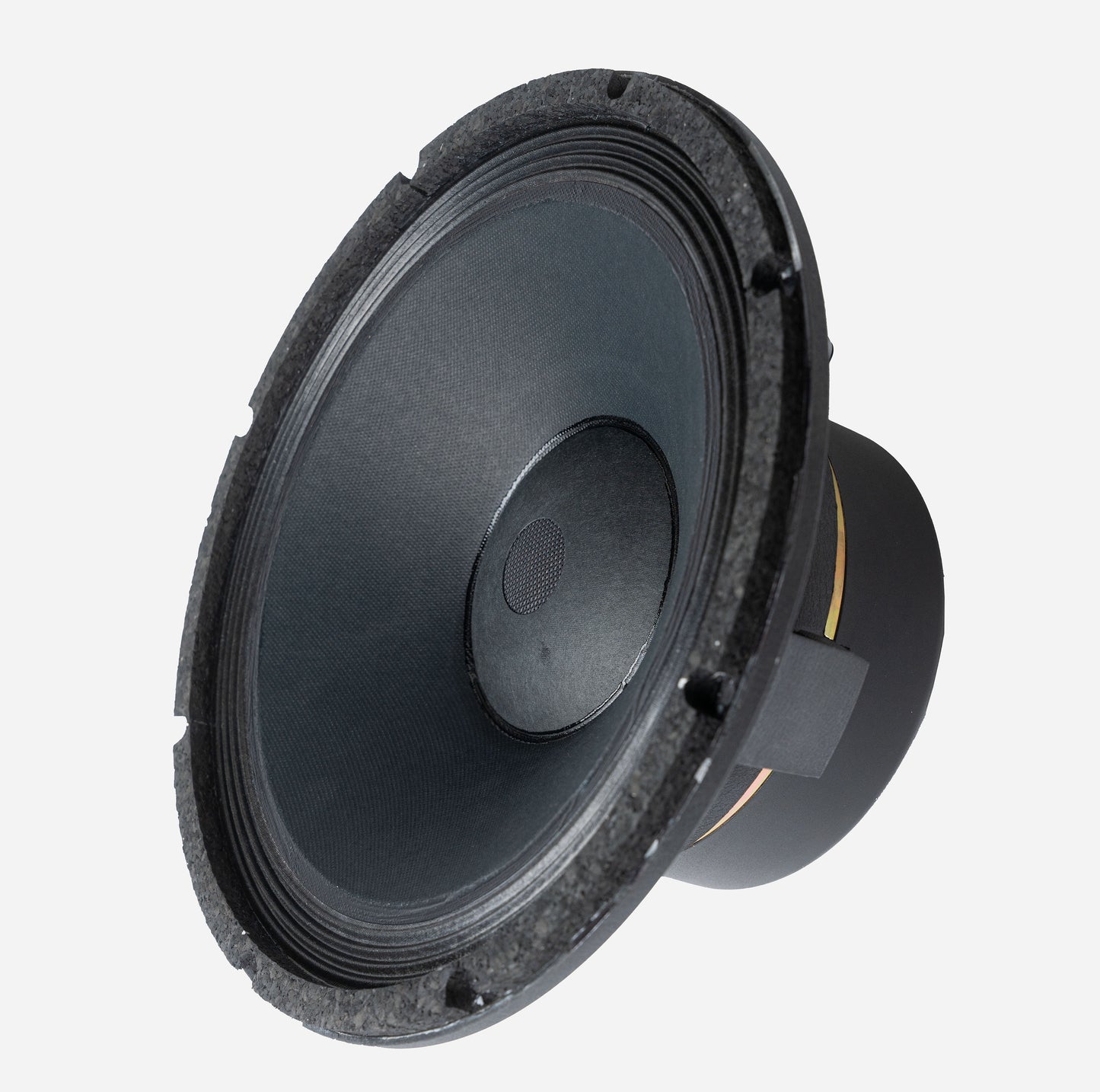

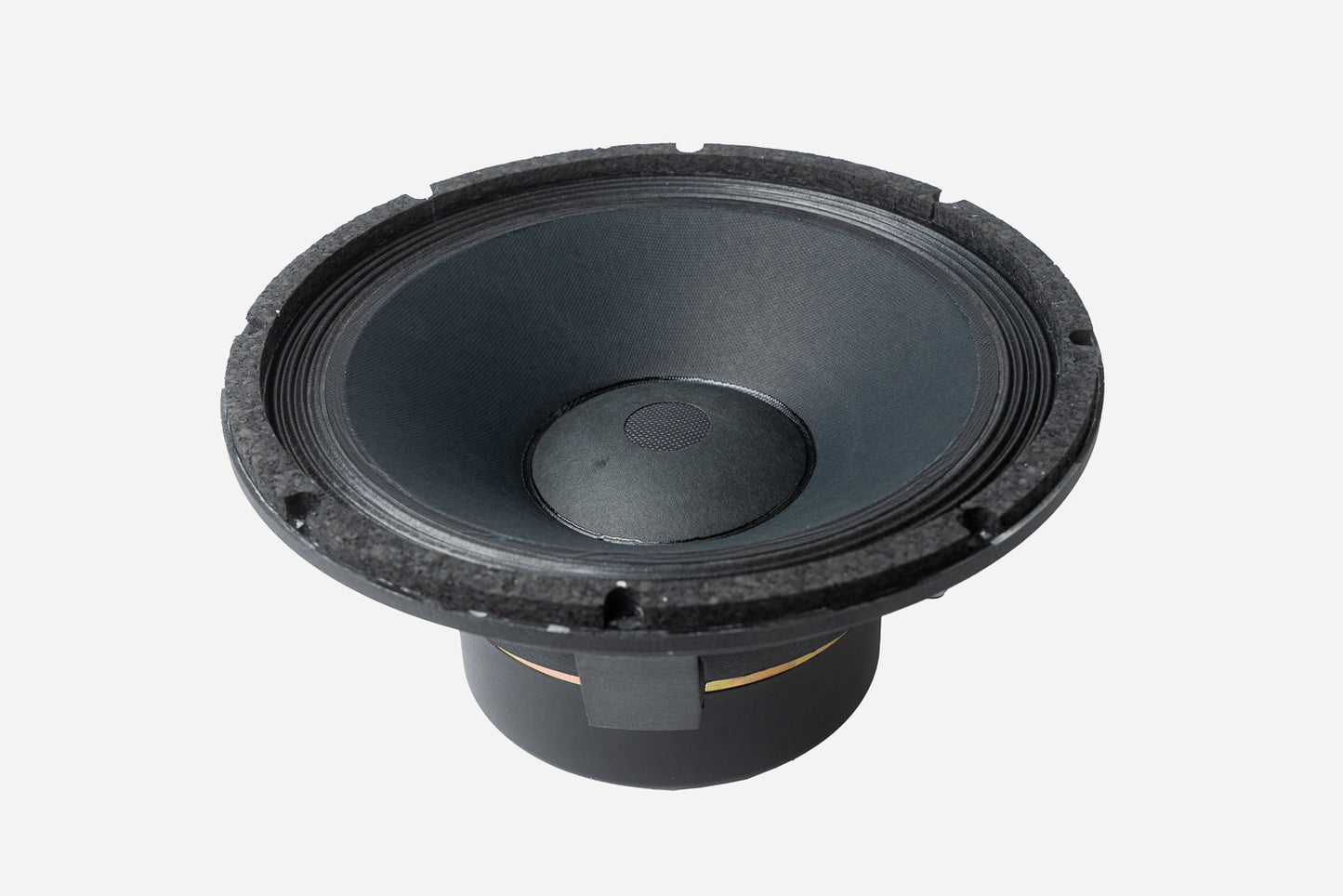

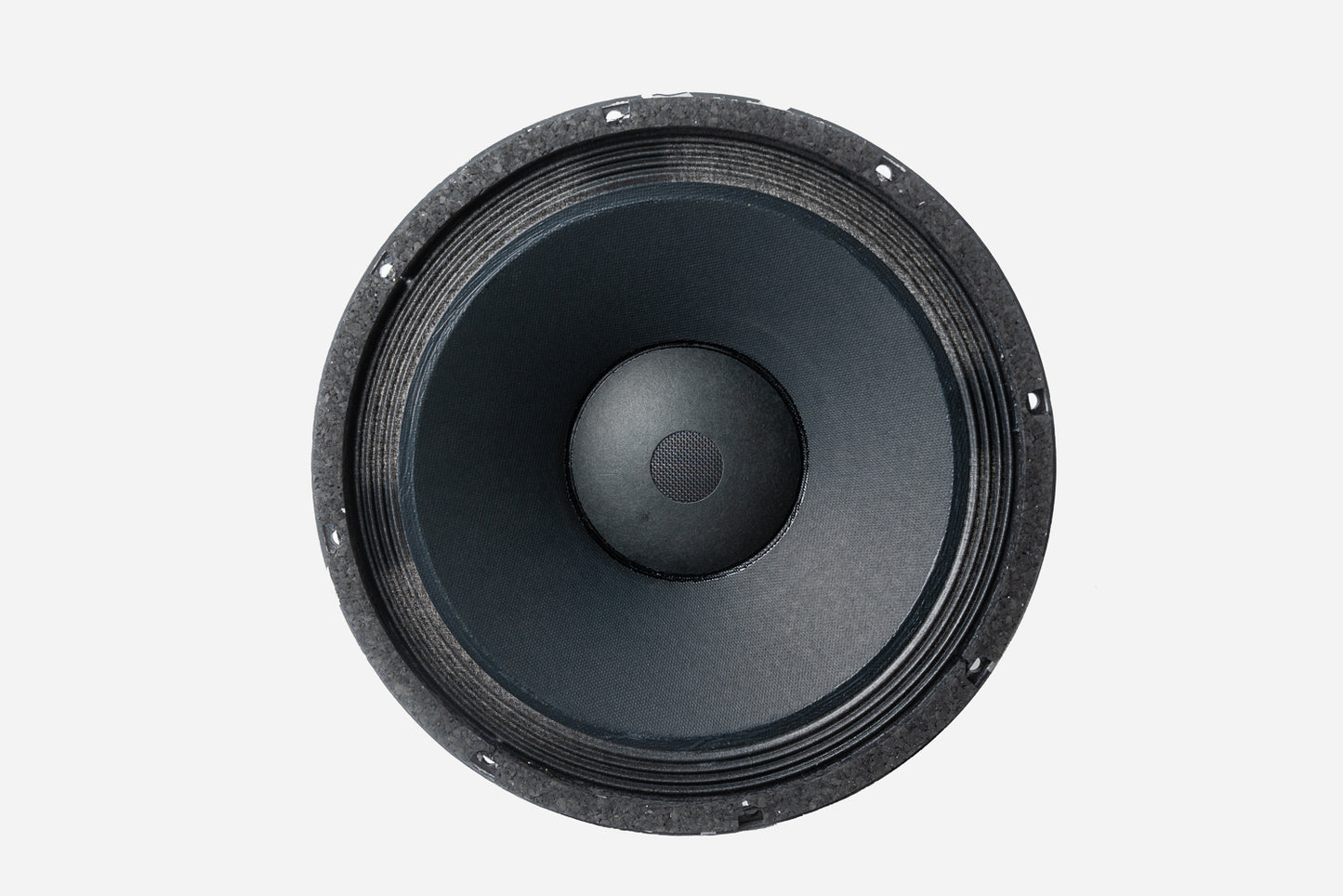

Our model 414-8B (16B) is a 12 in. (305 mm) low frequency loudspeaker. Because of its size, our 414-8B (16B) loudspeaker is ideal for use in moderately dimensioned sound reinforcement and high-fidelity applications.
This loudspeaker features a structurally reinforced, die-cast, aluminum frame. The frame’s 8 mounting bolt slots will accept a 0.25 in. (6 mm) diameter bolt or smaller, allowing the loudspeaker to be attached to almost any secure surface by either a front mounting or rear mounting method.
Click Here To View The 414-8B Spec Sheet

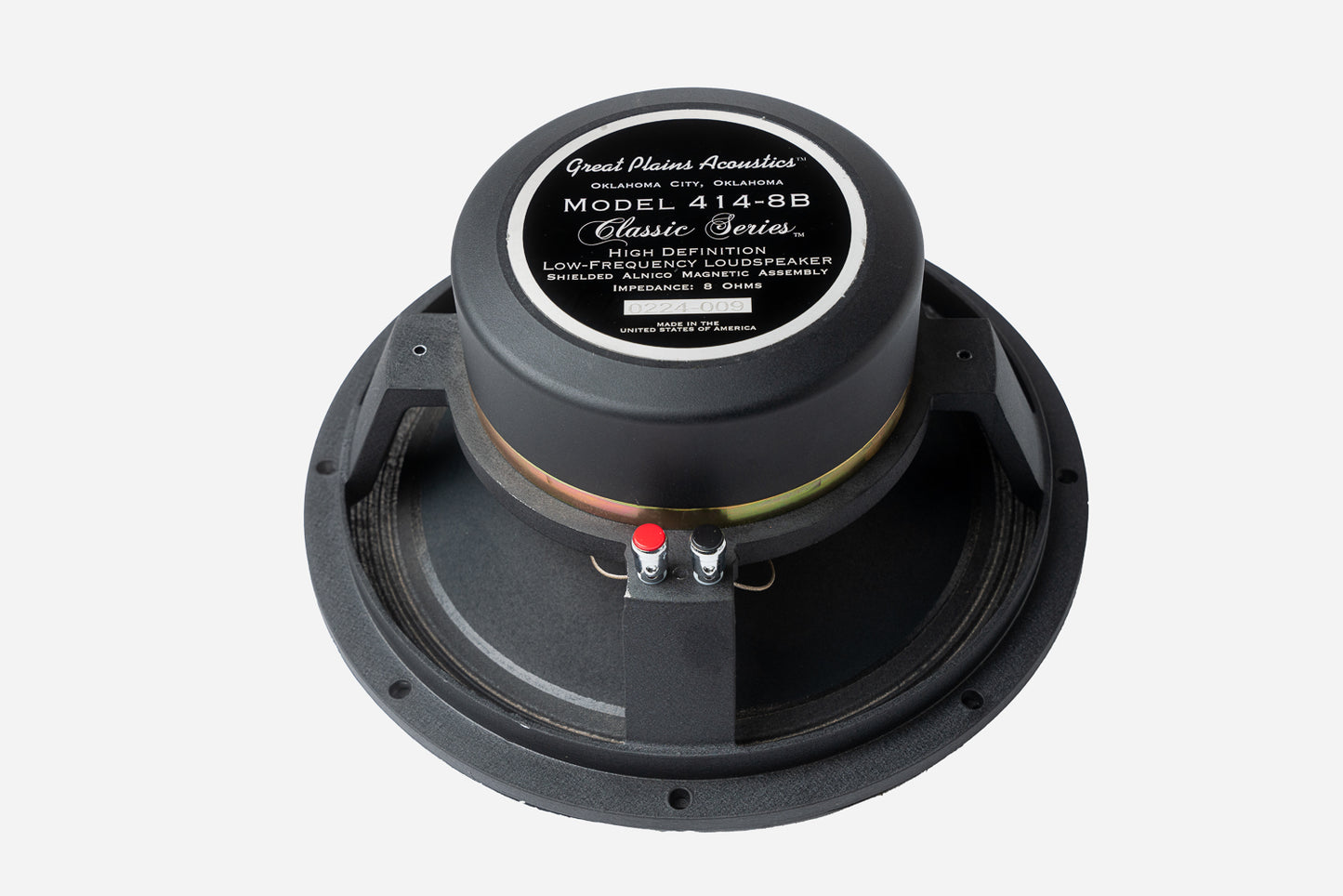

Also featured is a 1.8 lbs. (0.8 kg) AlNiCo V magnet, which produces an at-rest gap flux density of 0.9 T. Another feature is the 3 in. (76 mm) diameter, edge-wound, copper-ribbon voice-coil. This voice-coil is attached to a high grade fiber cone. The cone is secured to the frame with a high compliance cloth surround. A complete 414-8B (16B) voice-coil-cone assembly is manufactured and sold by Great Plains Audio as a direct replacement part. Great Plains Audio’s parts support assures the same dependable operation with our new products as our parts support has provided for many original Altec Lansing products.
