Model 288-8H
Model 288-8H

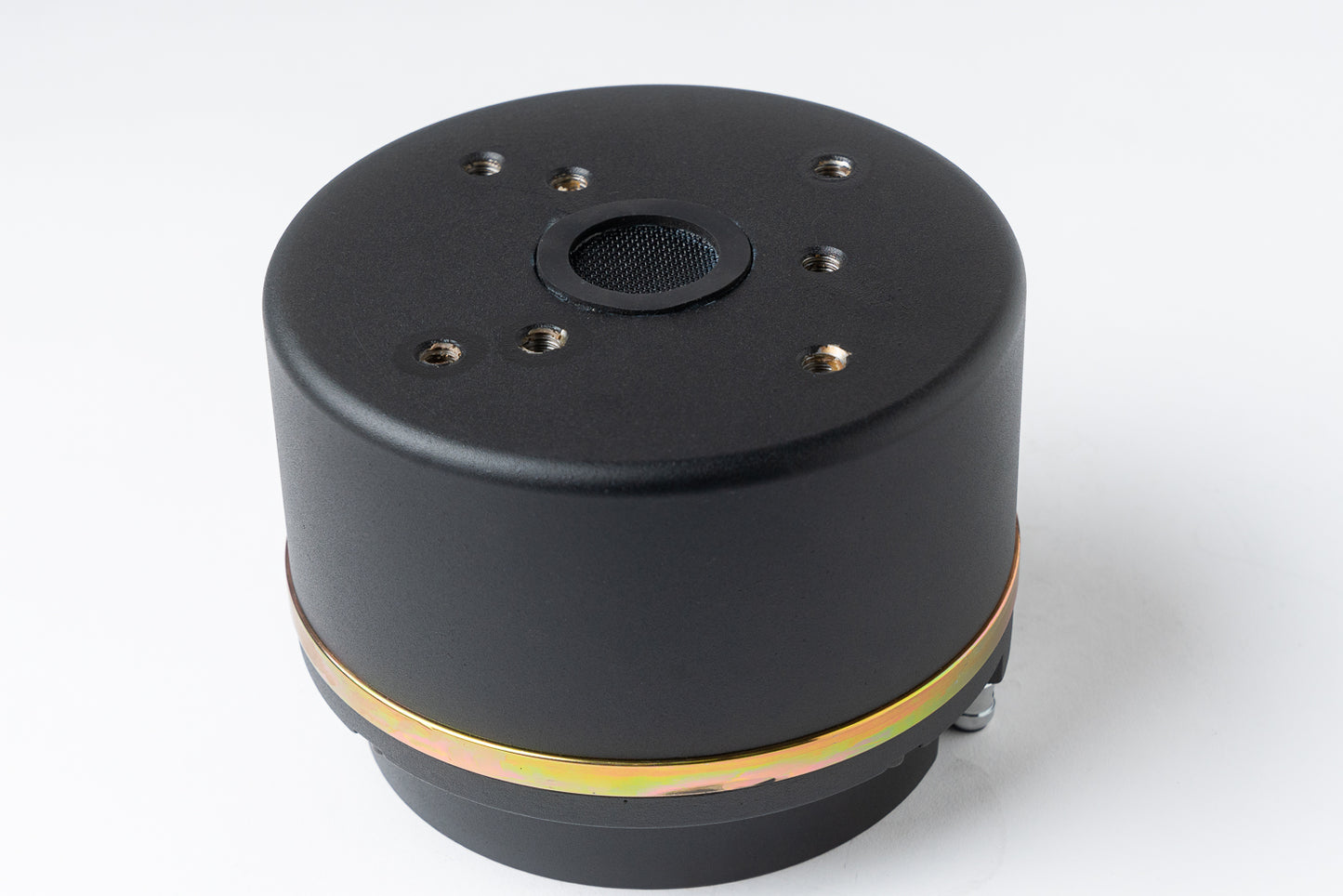

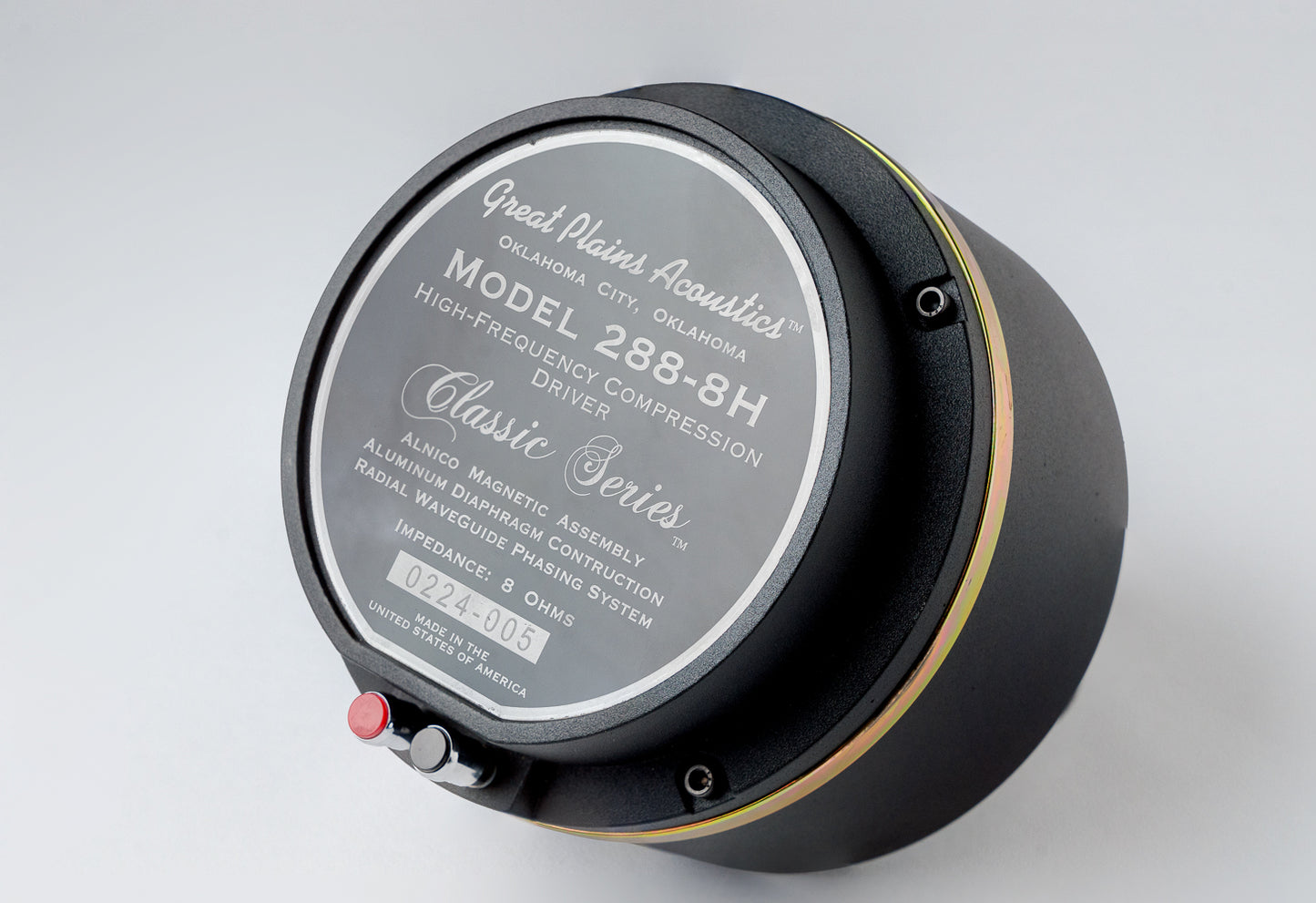

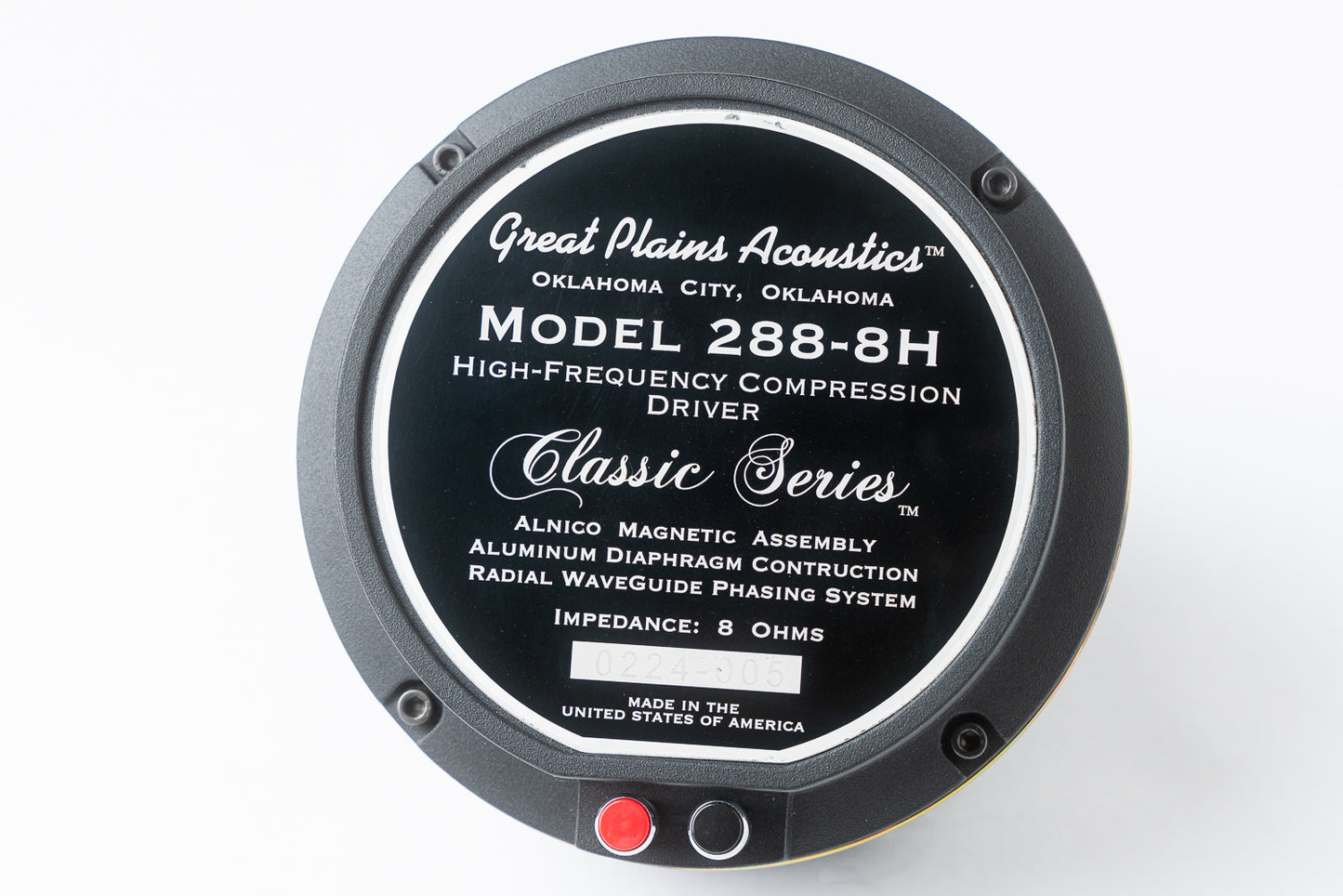

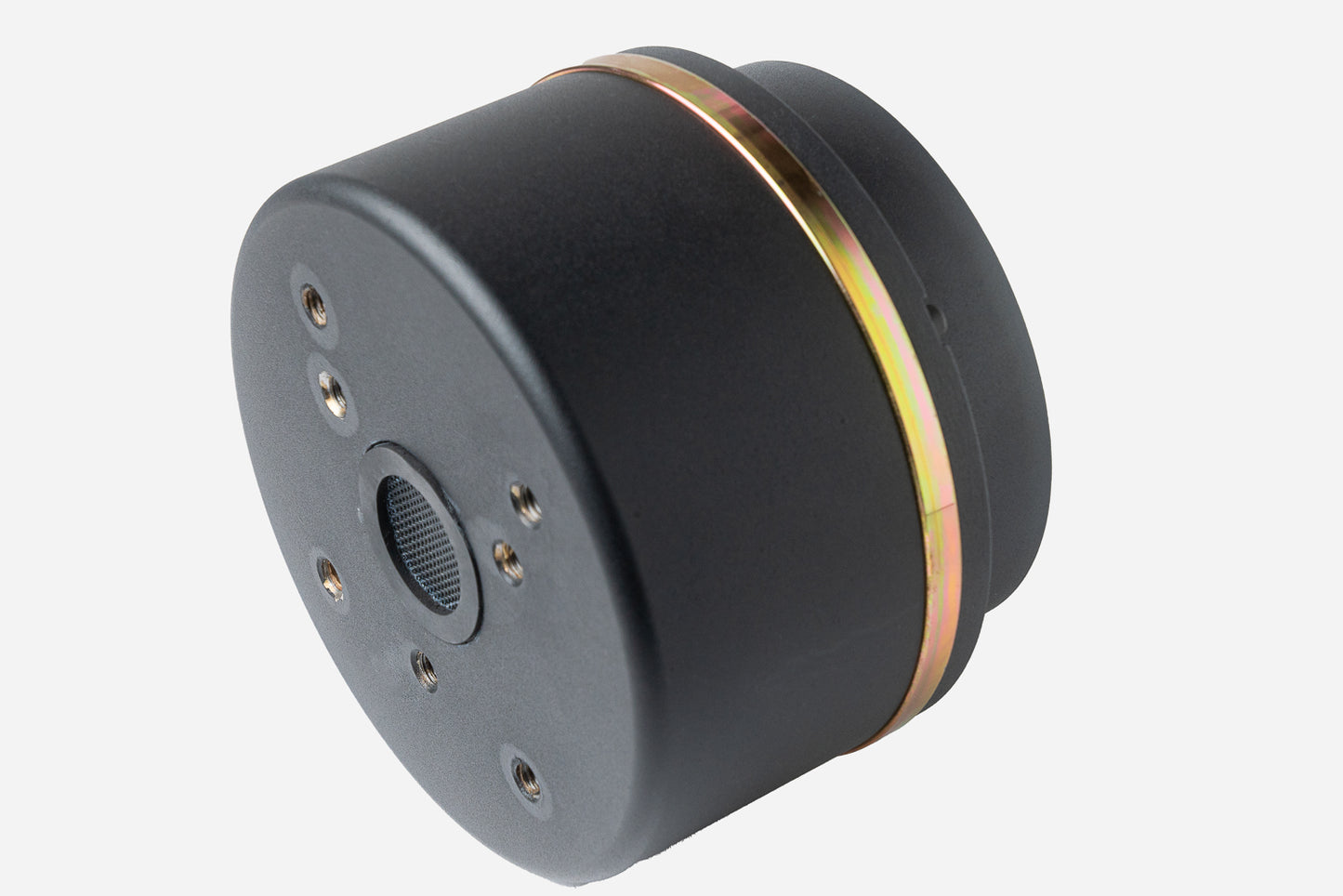

Our 288-8H (16H) is a large format [1.4 in. (36 mm) diameter throat exit] high frequency compression driver, featuring a 3.4 lbs. (1.54 kg) Alnico V magnet, which produces an [at-rest] gap flux density of 2.05 T. It also features a 2.8 in. (71 mm) diameter, edge-wound, copper/clad aluminum-ribbon voice-coil. The voice-coil is attached to a high grade aluminum alloy diaphragm. Sound waves from the high frequency voice-coil- diaphragm assembly are channeled through our Radial Waveguide phasing system. This system provides the proper phase relationship between the sound waves emanating from the center of the diaphragm assembly and the sound waves emanating from the edges of the diaphragm assembly. An exponential throat is utilized to pass these phase coherent sound waves through the body of the driver to its exit port.
Click here to download data sheet.
